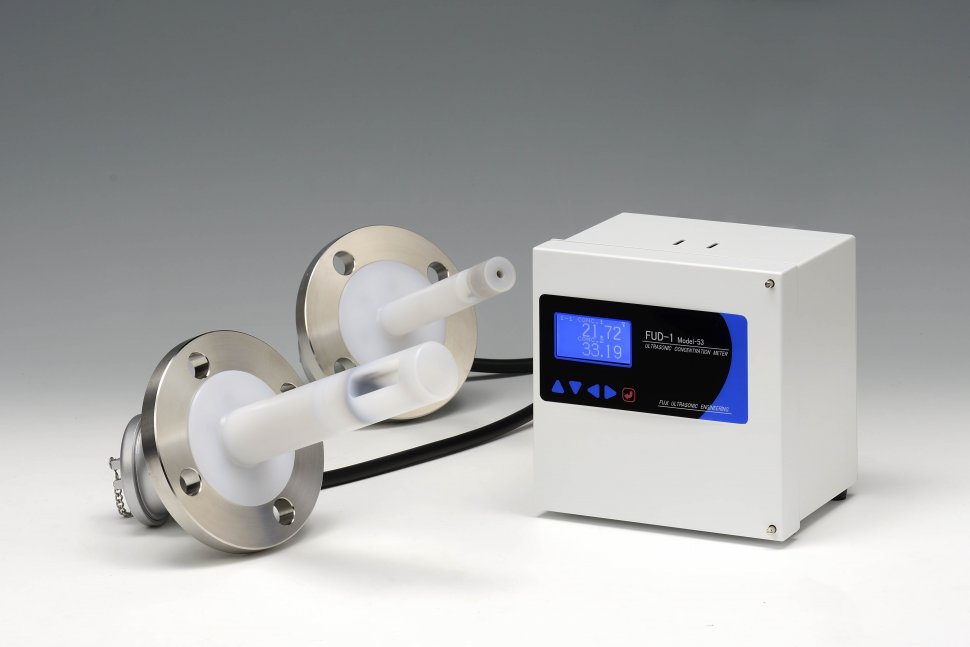

Ternary Model (Flange type)　

FUD-1 Model-53／FUD-1 Model-63(Explosion proof model)

The ternary model is available for two solutes in solution (two components in solvent) with combination technology of ultrasonic propagation velocity & conductivity.

[Brochure] FUD-1 Model-53/63（1.5MB）

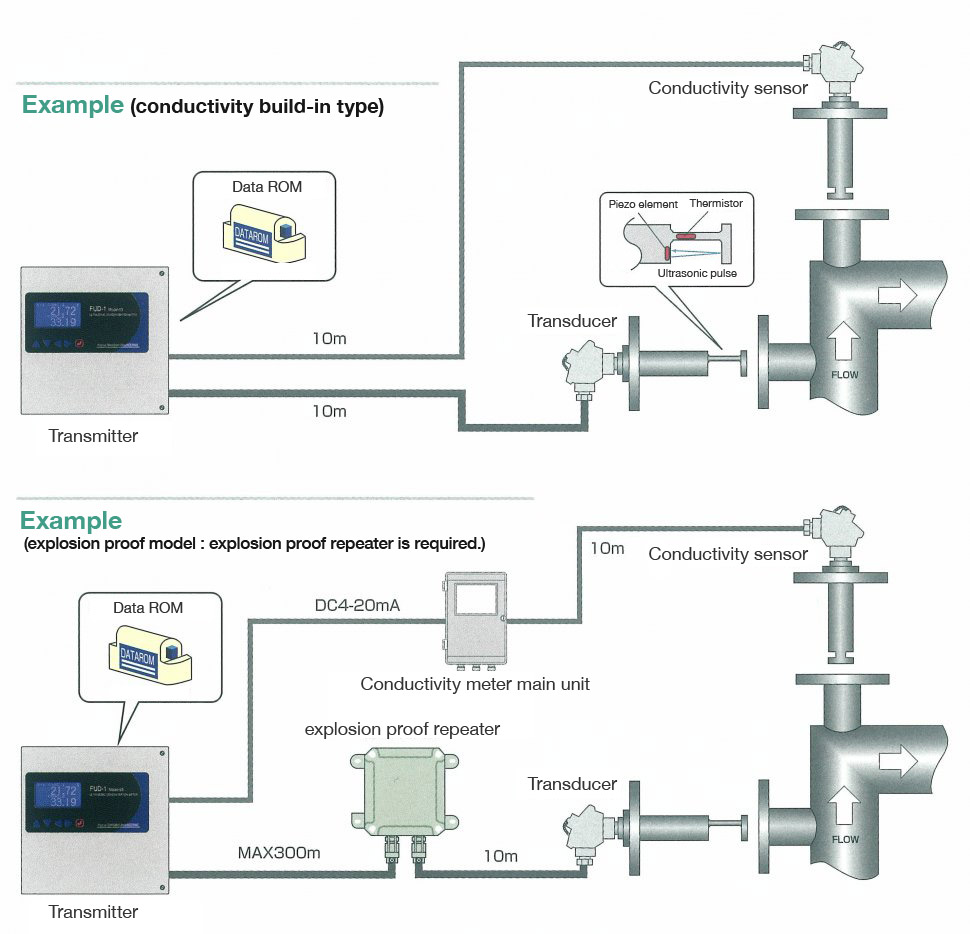

System Configuration

Advantages

● Combined technology of velocity & conductivity	? Real time measurement with tight accuracy
● No moving part design	? No need for periodical parts replacement & calibration
● Easy installation	? No calibration at installation
● Useful functions	? Easy system integration for process control in real time

Applications

Etchant + dissolved material
Cleaner + dissolved material
Mixing two chemicals

Specifications

Name		FUD-1 Model-53/FUD-1 Model-63 (Explosion Proof Type)
Measurement parameters		Ultrasonic velocity, conductivity and temperature
Display		LCD (concentration 1 & 2, temperature, velocity, conductivity/various parameters)
Outputs		Analog / DC4 - 20mA 2 lines (adjustable for conc. value) Digital / RS232C (concentration 1 & 2, temperature, velocity, conductivity, error code) Alarm / high, low, error 2 lines
Power		AC100 - 240V 50/60Hz, 30VA
Transmitter		Panel mount type (DIN Standard)
Environment		Temp.0 - 50 degree C, RH less than 85% (No dew condensation)
Temp. of liquid		0 - 100 degree C, -10 - 160 degree C (100 degree C span) [Option]
Function		Output setting, Alarm-output setting, Average times setting, Offset and Gain setting, Self-diagnosis-check, Fail Safe Mode, Auto Error Canceller Mode
Option		RS485 Output (Alternative choice with RS232C.) Temp. Output (DC4 - 20mA)
Channel		max. 7ch.
Cable		10m (normal), Max. 300m (A Repeater is required for more than 10m.)
Explosion Proof Type	Repeater	Ex 2 BT4
	Transducer	Ex 2 CT4
Meterials of Transducer		SUS316（L）, SUS304（L）, Teflon coated, Hasteroy, Titanium, Nickel, Tantalium, PFA, PTFE, PVC, PVDF, etc.
